"ACE" Back Panel and Specifications

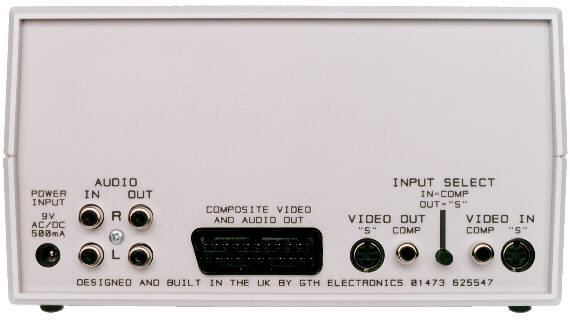

Back View of ACE, Showing Connections. File Size 24k
Click Here for Video DetailsClick Here for Audio DetailsClick Here for Power DetailsClick Here for SCART Details

ACE SPECIFICATIONS

The ACE Convertor will convert between any two TV standards with full colour correction and timebase correction or can provide full aspect ratio conversion. It is supplied with Two Stereo Phono leads, an "S" video lead and a special "S" to Dual Composite video lead. It comes complete with Full Manual, Full 1 Year Warranty and 220/240V AC Mains Adaptor where applicable.

The Original ACE had three versions (625 line PAL, 625 line SECAM and 525 line NTSC) all no longer available.
Click here for details of the Original ACE Versions or for details of their Automatic Colour Standard Conversion:

NTSC Version | SECAM Version

NTSC to PAL | SECAM to PAL | PAL to SECAM | NTSC to SECAM | PAL to NTSC | SECAM to NTSC

Click on any Connector Group in the Picture Above to go Directly to its Description.

Video

VIDEO INPUTS: "S" Video (Mini DIN) and Composite (Phono), Switchable with Automatic Colour Standard Conversion

VIDEO OUTPUTS: "S" Video (Mini DIN), Composite (Phono) & Composite + RGB/YUV (SCART), All Simultaneous.
The "S" Video Output can also be switched to give 2 Extra Composite Video Outputs (4 Total), using special lead supplied.

If your Recording VCR is S-VHS with only a SCART Input, or if your Playback VCR has only a SCART Output, then we can supply switchable (Input or Output) "S" & Phono to SCART adaptors at the nominal sum of £4 each.

If you wish to connect the RGB or YUV Outputs to a device with no SCART input, such as a projector or Betacam VCR, then we can supply a specially modified SCART to Three Phono adaptor at the nominal sum of £10 each.

If you wish to process RGB inputs then we suggest you buy the RGB to "S" Video Converter from J.S.Technology

VIDEO INPUT and OUTPUT LEVELS and IMPEDANCES:
"S" Video Luminance 1V peak to peak into 75 Ohms
"S" Video Chrominance 0.3V peak to peak into 75 Ohms
Composite 1V peak to peak into 75 Ohms
RGB/YUV on SCART 0.7V peak to peak into 75 Ohms (Output Only)

VIDEO BANDWIDTH:
"S" Video Luminance 5.5MHz (True "S" Processing)
"S" Video Chrominance 1MHz (True "S" Processing)
Composite Luminance 3MHz on Original ACE, 5.5MHz for Convertor (Using Comb Filtering)
Composite Chrominance 1MHz

VIDEO SIGNAL/NOISE RATIO: >50dB (Colour Burst, Sync & Blanking All Regenerated)

CONTRAST & SATURATION: 0 (Zero) to +6dB (Double)

VIDEO SHARPNESS: +/- 3dB at 3MHz

HORIZONTAL COLOUR SHIFT: 0 +/- 740ns in 10 steps either way. (+/- 7mm approx on 50cm screen width).

VERTICAL COLOUR SHIFT: 0 to + 3 Lines per Field in 1 line steps (= 0 to +6 Lines per Frame in 2 line steps).

Audio

AUDIO INPUTS: Stereo Left and Right (Phono)

AUDIO OUTPUTS: Stereo Left and Right (Phono) and Stereo Left and Right (SCART), Both Simultaneous

AUDIO INPUT LEVEL and IMPEDANCE: 1.7V RMS Maximum into 40k Ohms Typical

AUDIO OUTPUT LEVEL and IMPEDANCE: 1.7V RMS Maximum from 10 Ohms Typical

AUDIO BANDWIDTH: 20Hz to 20kHz +/-1dB

STEREO SEPARATION at 1kHz: >60dB

AUDIO SIGNAL/NOISE RATIO: >70dB

Power

POWER INPUT: 9V RMS AC or DC at 500mA See Power Supply Details

MAINS POWER: 220/240V AC Nominal, 50/60Hz (USA & Canada See Power Supply Details)

Dimensions

205mm (Width) x 115mm (Height) x 160mm (Depth)

DESIGNED AND BUILT IN THE UK BY and AVAILABLE DIRECT FROM GTH ELECTRONICS
